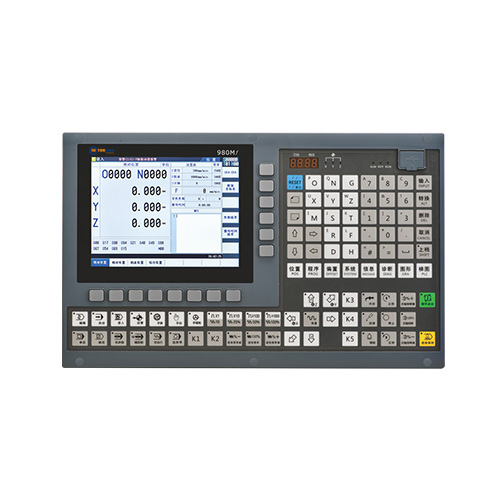

MLT980TA adopts 8.4 "color LCD, new appearance design, horizontal,
vertical two structural forms. Maximum control of 5 axes (including
C-axis), minimum instruction unit 0.1μm. Handal trial, teaching
programming, Debug wizard, parallel PLC axial control, etc., supports
drilling tapping, cylindrical interpolation, polar coordinate
interpolation, polygonal turning, etc. The interface is fully compatible
with MLT980TDC, which is better than MLT980TDC. MLT980TA supports
absolute And the adaptation of the incremental servo device is the
choice of popularity of the number control lathes!
Main technical characteristics
8.4 "Color LCD, new appearance design
14 separate software keys, easy operation
With automatic tool offset function, support automatic knife detector adaptation
Have fun in teaching programming, hand test, debugging wizard, programming debugging is simple and efficient
Have a control function, car, milling, etc. of polygonal cars,
cylindrical interpolation, polar coordinate interpolation, cars and
milling
Support parallel PLC axial control, zero-cost implementation of the indexing table, rotating material frame, truss, etc.
Support interface custom, built-in multi-PLC, personalized products easy to create
With additional panel fast connection interface, it can greatly simplify the connection of additional panels.
Unlimited time-time shutdown function, refusing arrears
Free adaptable absolute, incremental servo drive
|
Project
|
MLT980Ta
|
|
LCD
|
8.4
|
|
Maximum Control Rax
|
5-axis (including CS axis)
|
|
Maximum CS Axis
|
2
|
|
Analog Voltage
|
2
|
|
Minimum Instruction Unit
|
0.0001mm
|
|
Maximum Transmission Speed
|
60000 mm/min
|
|
Maximum Cutting Speed
|
30000 mm/min
|
|
Basic IO
|
32/32
|
|
Cylindrical Interpolation
|
yes
|
|
Polar Interpolation
|
yes
|
|
Polygon
|
yes
|
|
Automatic Tool Offset
|
yes
|
|
Panel structure
|
Integrated panel
|
|
Dimensions (width × height × Deep, unit: mm)
|
Horizontal
|
420×260×80
|
|
Vertical
|
260×420×80
|
